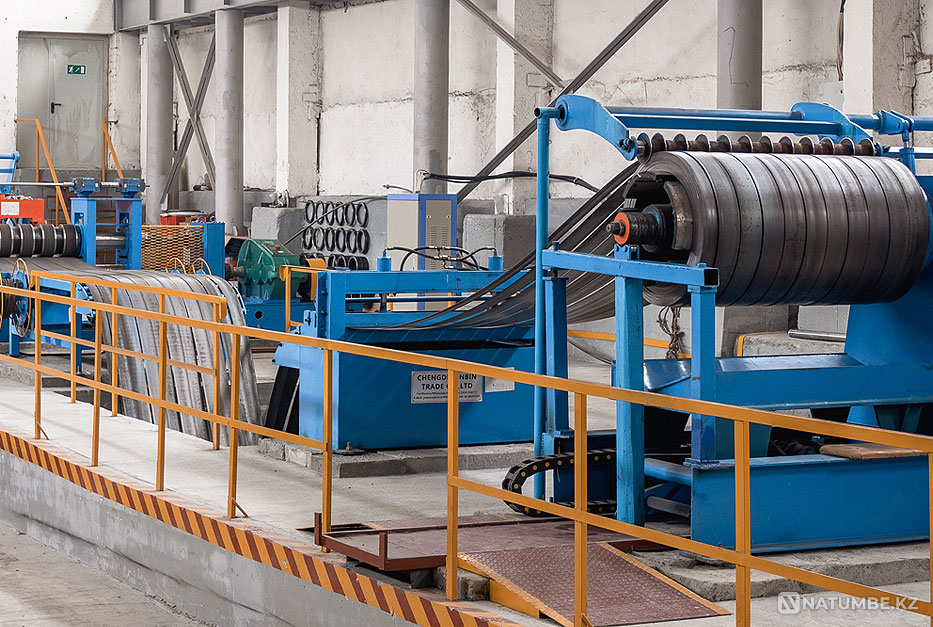

Metal slitting line model
39 999 ₸
Metal slitting line model
№236932 Created: June 28 2023
Address:
КНР, г.Чэнду, проспект Цзинь Фэн,№6, Moscow, Russia
The line for longitudinal and cross cutting of metal can cut metal into several narrow strips in the longitudinal direction, and cut metal into sheets in the transverse direction. Then automatically tie these strips into coils.
1.1Main technical
Metal cutting speed : 0-30 m/min
Number of knives: 12 pairs (optional)
Cutting strip width: ≥80mm (optional)
Cutting sheet length: any (can be adjusted)
Width tolerance: ±1.0mm
Length tolerance: ±1.0 mm
1.2 Technical characteristics of raw materials
Cutting material: galvanized, polymer-coated rolled metal, cold steel
Metal thickness: up to 1.5mm
Metal width: up to 1250mm
Metal coil inner diameter: Φ480-530mm (optional)
Metal coil weight: 7 tons
1.3Other specifications
Power supply: 380V/50Hz/3Ph
Machine color: on request
Product area: about 30m*6m*2m
1.1Main technical
Metal cutting speed : 0-30 m/min
Number of knives: 12 pairs (optional)
Cutting strip width: ≥80mm (optional)
Cutting sheet length: any (can be adjusted)
Width tolerance: ±1.0mm
Length tolerance: ±1.0 mm
1.2 Technical characteristics of raw materials
Cutting material: galvanized, polymer-coated rolled metal, cold steel
Metal thickness: up to 1.5mm
Metal width: up to 1250mm
Metal coil inner diameter: Φ480-530mm (optional)
Metal coil weight: 7 tons
1.3Other specifications
Power supply: 380V/50Hz/3Ph
Machine color: on request
Product area: about 30m*6m*2m
