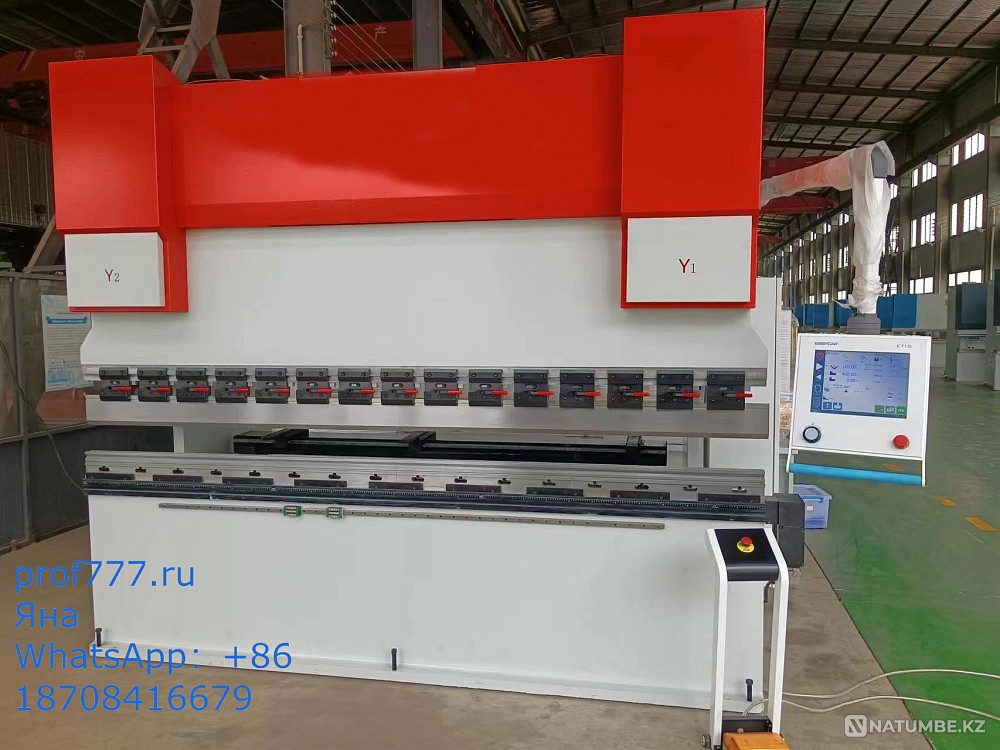

Electro-hydraulic servo bending machine
4 766 444.23 ₸
Electro-hydraulic servo bending machine
№237254 Created: August 2 2023
Address:
Moscow, Russia
100t/4m electro-hydraulic servo bending machine
Pressure 1000KN
Bend length 4 m
Distance between columns 3.2m
Neck depth 320mm
The maximum pressure in the system is 22MPa
Main engine power 7.5 kW 1440 rpm Siemens
CNC system DA53T system
Bending Accuracy Angle ±30'
Straightness ±0.7mm/m
This machine is an electro-hydraulic synchronous CNC machine with Y1, Y2, R, X, V (Mechanical Compensation) axes. The rack is composed of a fuel tank, a support block, a workbench, left and right wall panels, and a slider, forming an overall structure that ensures the strength of the rack structure. processing, which ensures the straightness of the upper surface of the attachment of the slider to the mold in working condition. The entire frame is sanded to remove rust and covered with anti-corrosion paint.
Pressure 1000KN
Bend length 4 m
Distance between columns 3.2m
Neck depth 320mm
The maximum pressure in the system is 22MPa
Main engine power 7.5 kW 1440 rpm Siemens
CNC system DA53T system
Bending Accuracy Angle ±30'
Straightness ±0.7mm/m
This machine is an electro-hydraulic synchronous CNC machine with Y1, Y2, R, X, V (Mechanical Compensation) axes. The rack is composed of a fuel tank, a support block, a workbench, left and right wall panels, and a slider, forming an overall structure that ensures the strength of the rack structure. processing, which ensures the straightness of the upper surface of the attachment of the slider to the mold in working condition. The entire frame is sanded to remove rust and covered with anti-corrosion paint.
№237254 Created: August 2 2023
4 766 444.23 ₸
Negotiable
