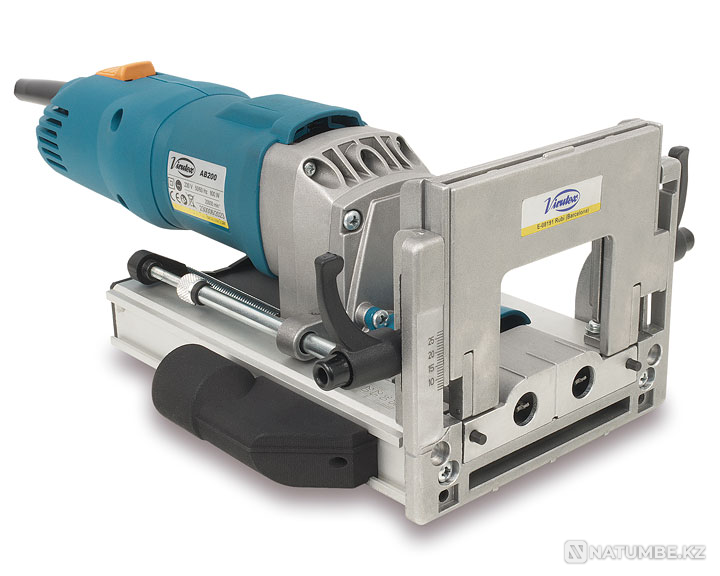

ROUND DOLLS DOWEL CUTTER

The AB200-TWOO dowel milling machine is designed to produce double holes for dowels and also serial rows of holes. Powerful motor with speed control and with an electronic system for maintaining a given rotation speed. Smooth adjustment of the drilling depth. The AB200-TWIN dowel milling machine is equipped with a height-adjustable angular stop. Simple positioning of the milling machine using spring-loaded locking pins with a set distance of 32 mm. Double hole technology is used for a stable and fast connection.
Technical specifications
Power: 800 W
Speed: 20,000 rpm.
Drill diameter: 5 - 12 mm
Inclination angle: 0°–90 °
Milling depth: 0 - 38 mm

Standard delivery set
Stop for interfloor ceilings, stop for side and row of holes, limiter of the row of holes, drills for dowels (two drills each: D=5, D=6, D=8, D=10, D=12 mm)

Dowel drills Ø 5, 6, 8, 10 and 12 mm. - two of each size. Machine positioning without measurement. Ideal for intermediate floors. Limiter of the row of holes (pitch 32 mm) Longitudinal stop for a certain distance between holes. Minimum 5 mm.
