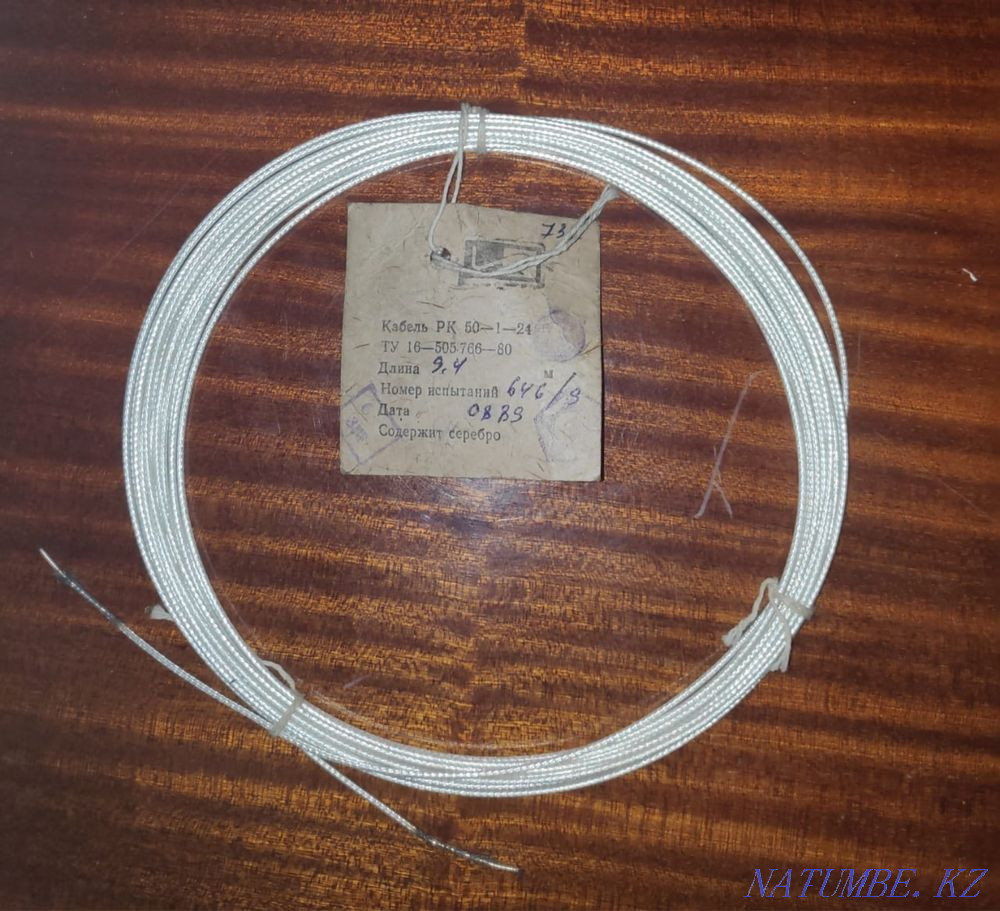

RF cable 90 tenge per meter

rk 50-1 -24 contains silver 90 meters development Elements of cable design RK 50-1-24: 1. Inner conductor Silver-plated wire from alloy BrHTsrK 1x7x0.12mm 2. Insulation Ftoroplast F-4MB 3. Outer conductor Braid made of silver-plated copper wire 4. Sheath Ftoroplast F-4MB Scope of cable RK 50-1-24: Used in radio communication and radar systems, electronics, computer technology, control systems, television, to connect radio frequency installations and antennas with power plants, also used in local computer networks. Specifications of cable RK 50-1-24: Characteristic impedance, Ohm 50±2 , not more than, dB/m, at a frequency of 0.2 GHz 0.62 Attenuation coefficient, not more than, dB/m, at a frequency of 3 GHz 2.8 Attenuation coefficient, not more than, dB/m, at a frequency of 15 GHz 9.0 Allowed 5000 bends (diameter 10mm) Vibration loads in the frequency range from 1 to 5000 Hz - with acceleration up to 400 m/s2 (40 g). Impact loads: multiple - with acceleration up to 1500 m/s2 (150 g), single - with acceleration up to 10000 m/s2 (1000 g). Linear loads - with acceleration up to 5000 m/s2 (500 g). Minimum bending radius When mounting at a temperature of 5 °C and above - 5 mm, below 5 °C - 10 mm. Electrical capacitance, pF/m - 95 Wavelength shortening coefficient - 1.43 Electrical insulation resistance, TΩ-m, not less than - 5 95% service life
