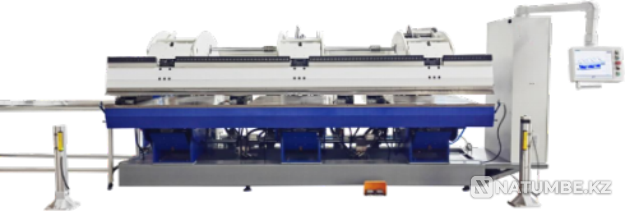

Up and Down Sheet Bending Machine (D
109 999 ₸
Up and Down Sheet Bending Machine (D
№269345 Created: July 2
Address:
2023 станок для производства модульной металлочерепицы Dachpol, Almaty, Kazakhstan,
Show
On Map
on the map
MACHINE JB4.2
Bending thickness 2mm
Bend length 4.2m
Back stop depth 1250mm
Backgauge accuracy +/-0. 1mm
Backgauge speed 250mm/s
Clamping stroke 130mm
Folding accuracy +/-0.5
Folding range 143
Folding speed 100 /s
Folding beam width 10+10mm
Number Captures 4
Number of C-frames 4
Voltage 380V 3ph
Power 41kW
Synchronous Drive Shaft Control Technologies
The machine uses 50mm drive shafts on both the folding beams and the moving of the top beams. There are a total of 6 drive shafts in the promotional series. The drive shaft ensures parallelism of the beams, which is excellent for forming radius parts and long-term use of the machine. Torsion bar driveshafts eliminate the "twist" that can occur over time due to hydraulic cylinders fighting each other's force. Drive shafts allow higher speeds. All shafts rotate on sealed spherical bearings for smooth, synchronized movement. No sudden movements of any axis during forming.
Bending thickness 2mm
Bend length 4.2m
Back stop depth 1250mm
Backgauge accuracy +/-0. 1mm
Backgauge speed 250mm/s
Clamping stroke 130mm
Folding accuracy +/-0.5
Folding range 143
Folding speed 100 /s
Folding beam width 10+10mm
Number Captures 4
Number of C-frames 4
Voltage 380V 3ph
Power 41kW
Synchronous Drive Shaft Control Technologies
The machine uses 50mm drive shafts on both the folding beams and the moving of the top beams. There are a total of 6 drive shafts in the promotional series. The drive shaft ensures parallelism of the beams, which is excellent for forming radius parts and long-term use of the machine. Torsion bar driveshafts eliminate the "twist" that can occur over time due to hydraulic cylinders fighting each other's force. Drive shafts allow higher speeds. All shafts rotate on sealed spherical bearings for smooth, synchronized movement. No sudden movements of any axis during forming.
№269345 Created: July 2
109 999 ₸
