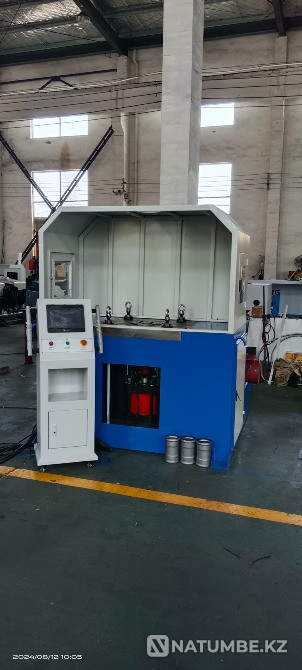

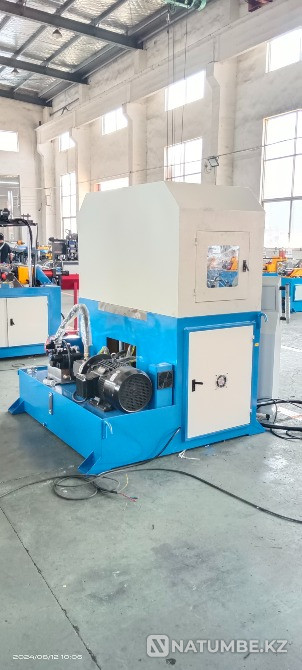

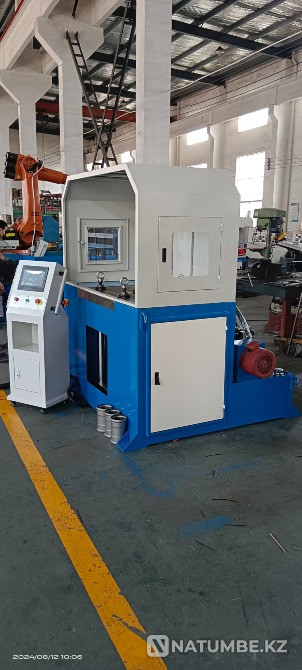

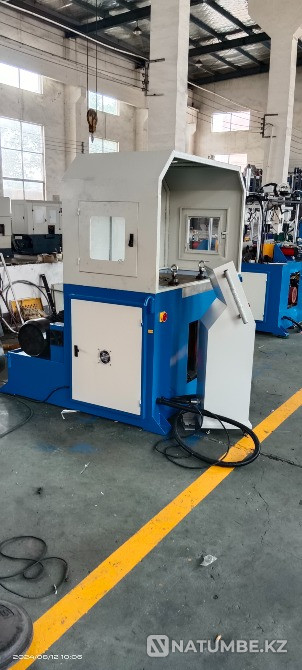

Pipe Expander and Grooving Machine
14 584 105.96 ₸
Pipe Expander and Grooving Machine
№269676 Created: August 12
Processing material: Stainless steel.
Workpiece tolerance after processing: ±0.2mm
Workpiece feeding method: Manual \ Vertical
Workpiece size: Length 50-500mm, diameter φ50- 110mm
Die steel: Cr12MoV die steel with hardening, hardness at hardening above 56 degrees, surface smooth and without burrs
Die change time: 20 minutes
Processing speed: 1 pc./30 seconds.
Machine power: 11 kW.
Processing thickness: 0.5- 1.5mm
Machine size: 1.6 * 1.7 * 1.1m.
Working height: about 0.9m
Machine weight: About 2200kg.
Voltage:380V,50HZ
Cooling system: Air cooler
Hydraulic pump system: Pressure 14MPa
Automatic control system: PLC with servo motor and drive
Dies: Ф50\\Ф75\\Ф110
Workpiece tolerance after processing: ±0.2mm
Workpiece feeding method: Manual \ Vertical
Workpiece size: Length 50-500mm, diameter φ50- 110mm
Die steel: Cr12MoV die steel with hardening, hardness at hardening above 56 degrees, surface smooth and without burrs
Die change time: 20 minutes
Processing speed: 1 pc./30 seconds.
Machine power: 11 kW.
Processing thickness: 0.5- 1.5mm
Machine size: 1.6 * 1.7 * 1.1m.
Working height: about 0.9m
Machine weight: About 2200kg.
Voltage:380V,50HZ
Cooling system: Air cooler
Hydraulic pump system: Pressure 14MPa
Automatic control system: PLC with servo motor and drive
Dies: Ф50\\Ф75\\Ф110
