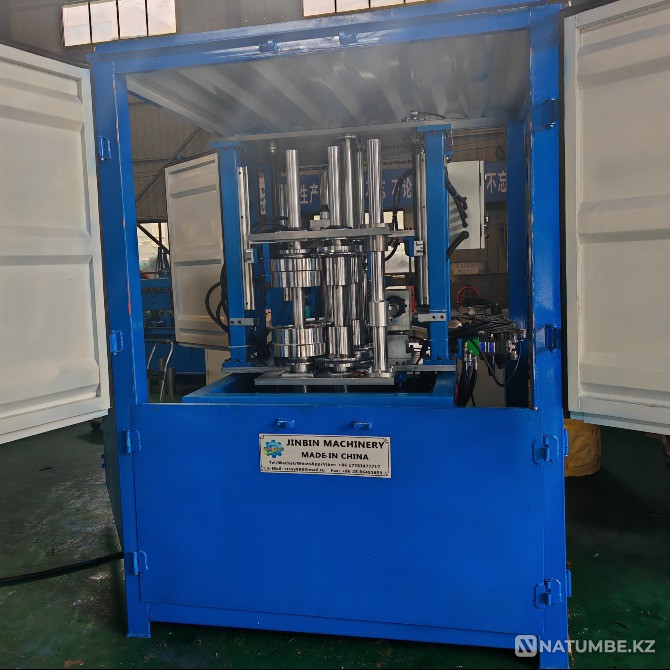

Equipment for bending rebates to a radius

Main characteristics:
Aluminum thickness：1.0 - 1.2 mm (alloy 3005/3150)
Production speed：0-18m/min
Maximum effective radius width: 500 mm.
Minimum effective arc width: 300 mm.
Minimum radius (straight): 1m
Minimum radius (back):5m
Forward and reverse radius: 10 radii can be created on one rolled panel

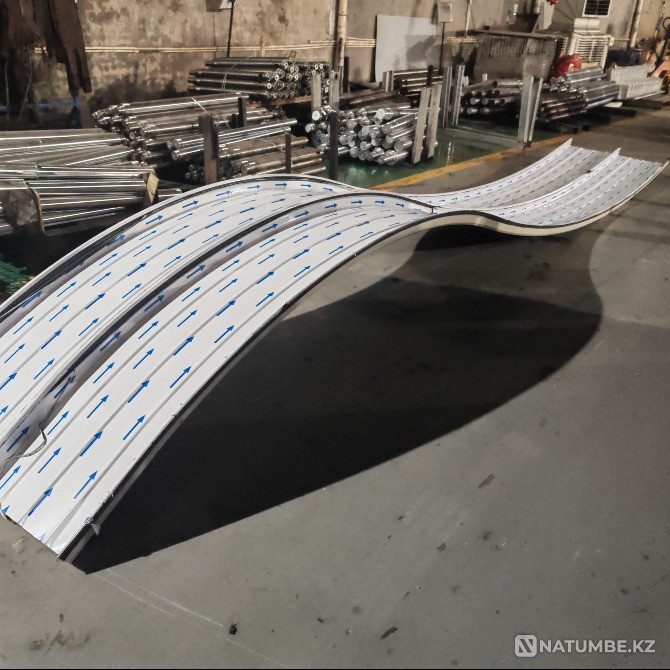

Trapezoidal radius: The upper and lower radius are separated. The trapezoidal radius can also be bent continuously on a single rolled panel.
Voltage: 380V 50Hz 3phase
Operating mode: automatic
General equipment information:
Number of working stands: 3 stands
Frame: pipes 80*80mm
Cage diameter：Φ60mm solid
Power:7.5kw+2kw
Drive: chain
Shaft steel: St45 hardened and tempered
Steel rollers: Cr12# finishing after heat treatment
Length counting method: counter
Control mode: PLC
Operation mode: button + touch screen (Chinese, English and Russian)
Speed control method: frequency converter.
Dimensions approximately：1600x1600x2000 mm
Weight: 2000kg
Packaging: in a small container
