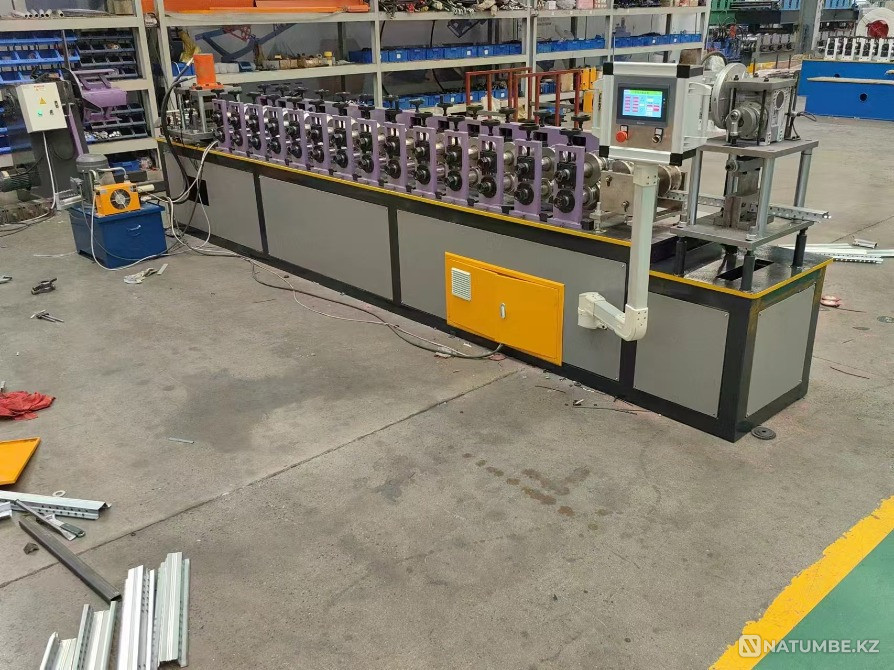

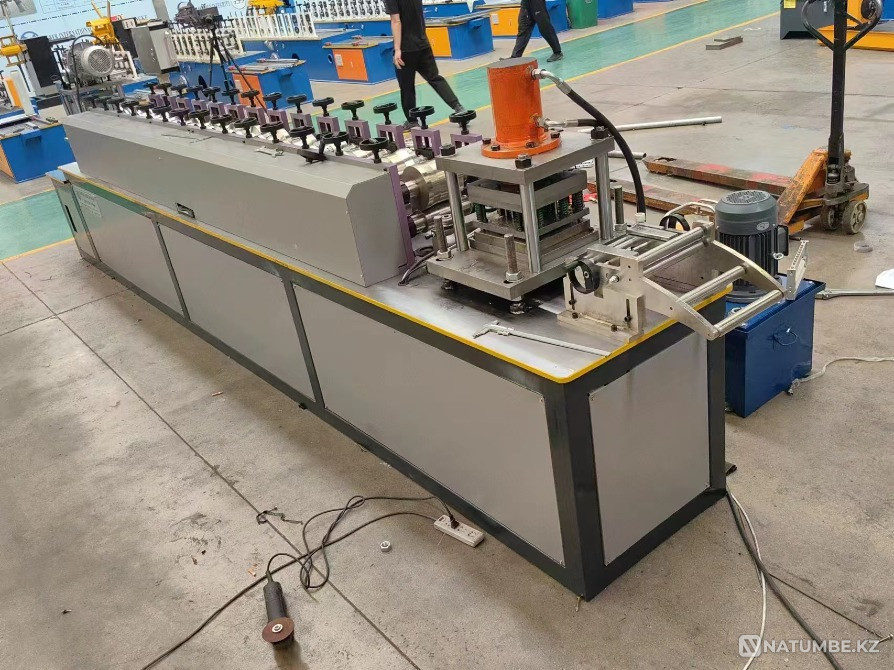

Ventilator profile production line

Main characteristics of the line:
 Operating mode: automatic
 Source material: Rolled sheet steel, galvanized and painted
coated
 Metal thickness: 0.45---0.5mm
 Metal processing width: 178mm
2 /54
Production speed: 0-13m/min without holes, 0-4m/min with holes
 Shaft material: 45 steel with hardened chrome plating, solid, solid.
 Roller material: steel 40X, hardening 48-50 HB
 Transmission method: reinforced chain transmission, one-inch chain
 Number of working stands: 14 stands
 Cage diameter: Φ50mm, solid shaft
 Thickness of wall panels on both sides: 16mm
Production technology and line composition:
Production technology process: metal feeding ---- profile bending ---- hydra cutting ----
ready-made corrugated sheet
Line composition：
1. Electric unwinder
2. Metal insertion plate
3. Hydraulic press with stamp
4. Roll forming mill
5. Cutting device (automatic)
6. Air-cooled hydraulic press system
7. Automatic control system (ACS)
8. Counter
9. Reception table 6 meters
