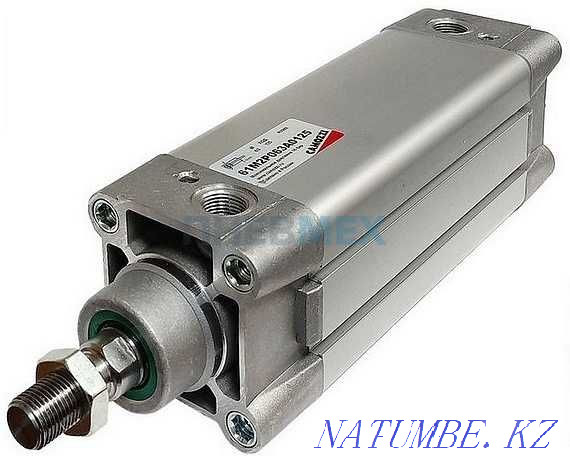

Pneumatic cylinder 61M2P063A0060

Camozzi pneumatic cylinder double-acting with damping adjustment in both directions, magnetic, cylinder diameter 63 mm, piston stroke 60 mm. Standard: ISO 15552 (DIN/ISO 6431). Construction: profile with studs inside. Connection: G3/8". Action: double-acting, magnetic Bore: 63 mm Stroke: 60 mm. Operating pressure 1-10 bar Damping with adjustable braking intensity in both directions Mounting of the sensors in the grooves of the body. Applicable sensors: series CST CSH Material sleeves anodized aluminum Material of caps and piston: aluminum Stem material stainless steel AISI-420B Material of studs galvanized steel Material of seals NBR standard Working medium: purified up to 25 microns compressed air according to ISO 857312010 with and without atomized oil
