Root crop sorting "Kartberg" 640 1 ₸

Root crop sorting "Kartberg" 640

№271504
Created: May 8
Root crop sorting
Root crop sorting
Address: Moscow, Russia

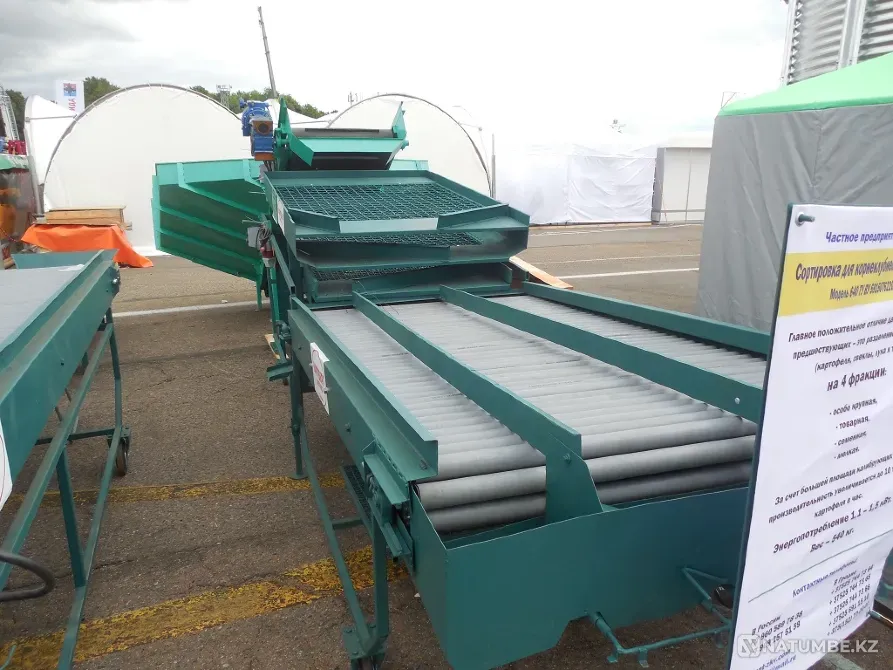

"Potato sorter Kartberg model 640
Universal equipment for post-harvest processing of root crops: potatoes, beets, carrots, onions, etc. Allows you to effectively separate the products into three fractions: large commercial, seed and small. The inspection table can be used as an independent unit.

Purpose and functions:
– Calibration and sorting of root and tuber crops;
– Separation of products by size and quality;
– Visual control with the ability to remove defects.

Equipment composition:

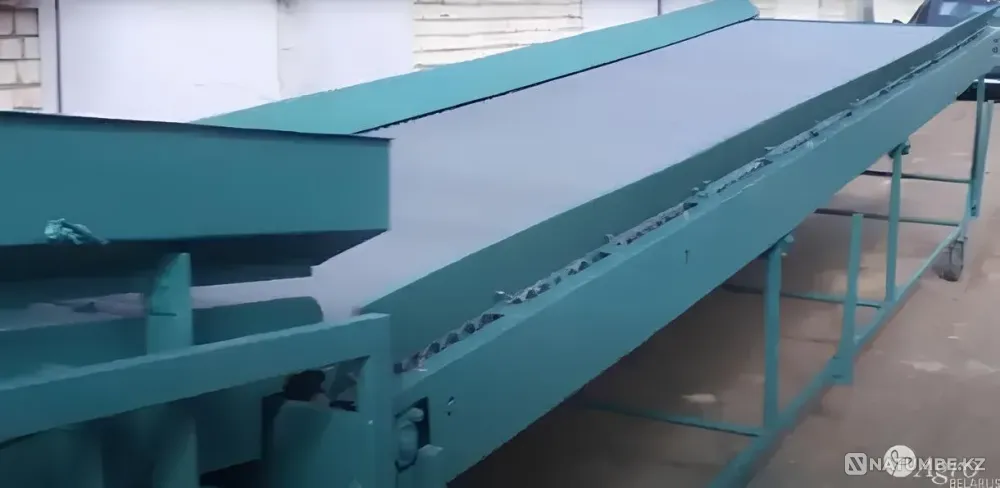

– Feed conveyor (L = 2500 mm, width 500 mm);
– Sorting body with a set of calibration sieves (6 pcs);
– Roller inspection table (2500 × 1300 mm), resistant to moisture and weather conditions.

Technical specifications:
– Machine weight: 700 kg;
– Performance: up to 10 t/h (with mechanized loading);
– Power consumption: 1.1–1.5 kW;
– Sieve cell size: from 20 to 90 mm (additional sieves — upon request);
– Sieve dimensions: 1300×1420 mm, 6 mm wire;
– Drives: gear motors on the conveyor and table (0.55 kW), sorting motor — 1.1 kW.

Features and options:
– Unit drives are separate, which simplifies maintenance;
– Possibility of replacing the tray, sieve configuration, adaptation for elongated varieties and onion sets;
– The inspection table is equipped with lighting and a container fastening device (upon request);
– The speed of the rollers is slowed down for operator comfort;
– Compact assembly — connection of units with threaded connections;
– Suitable for year-round use — from harvesting to planting.

Shipping throughout Russia and the CIS countries.
