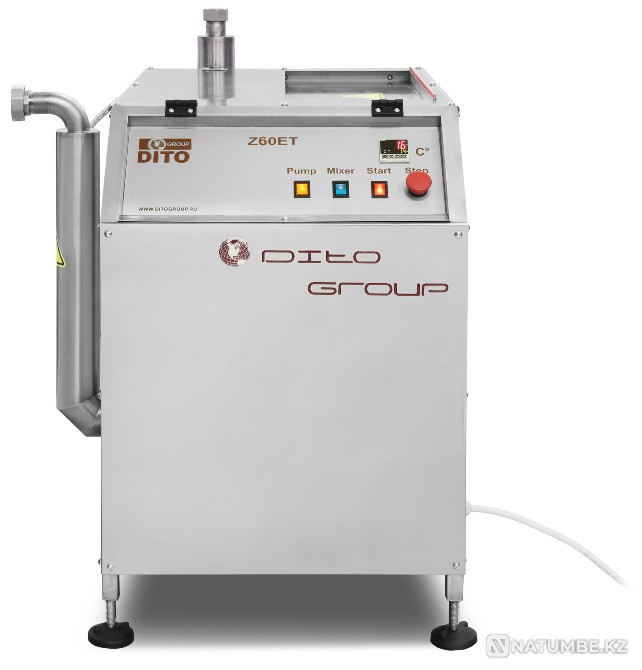

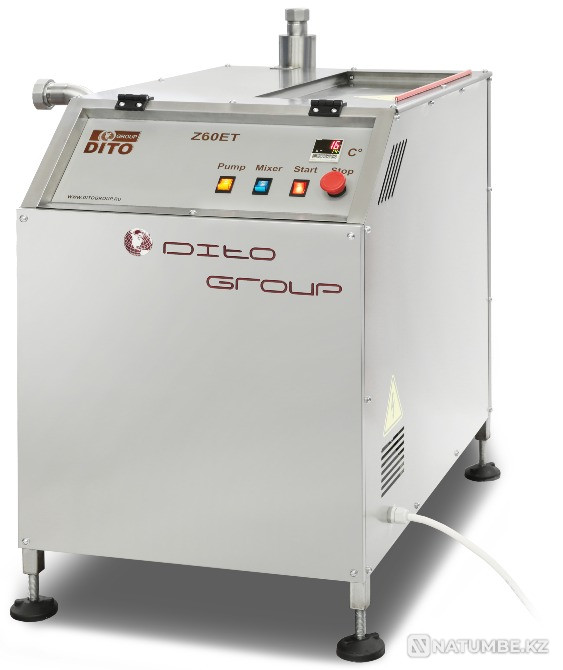

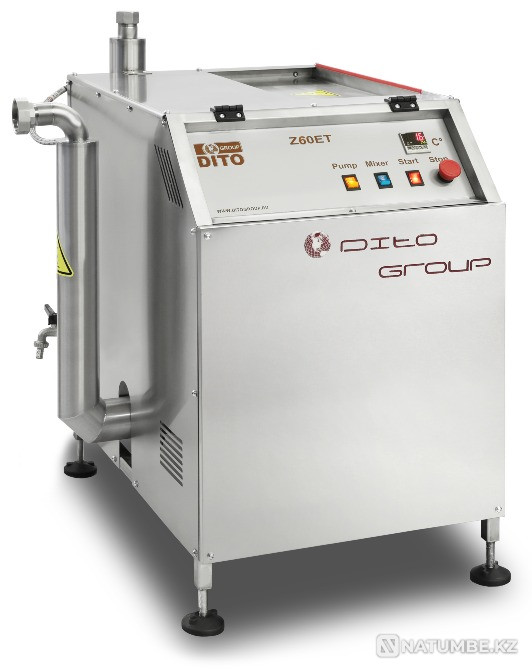

Chocolate glaze melting tank

Z series melting tanks are designed to melt and maintain a small volume of product in a molten state and then transfer or pump it into enrobing or tempering machines.
Chocolate is heated in a tank (60 kg capacity) heated in a water bath. A special liquid is used, circulating in a closed circuit.
The tank is equipped with a stirrer for continuous mixing of the product.
The tank can be equipped with a vane housing pump made of AISI 304 steel
(model Z60ET) for chocolate recirculation and feeding to enrobing
machines.
The tank body is made of AISI 304 stainless steel.
Technical specifications
Overall dimensions 550x800x950 mm.
Installed power of Z60ET – 6 kW.
Bowl capacity 80 l.
Volume of melted glaze 60 kg.
Weight 150 kg
Glaze heating time 25-30 min.
Filling jacket volume 20 l
