Coaxial cable RG-142

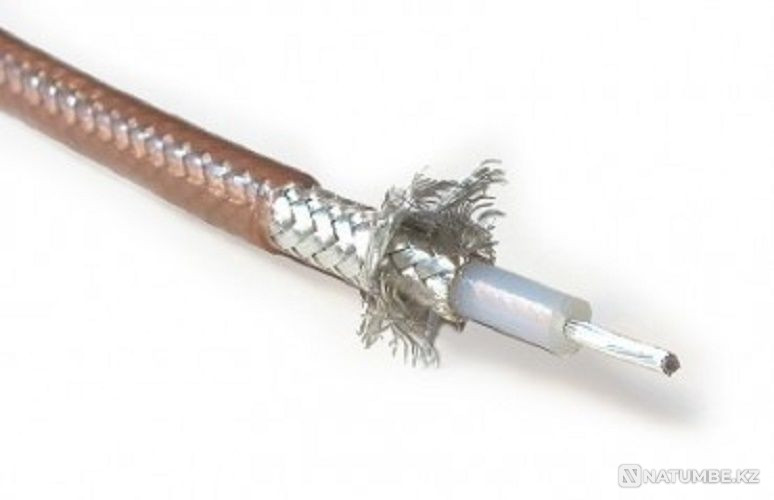

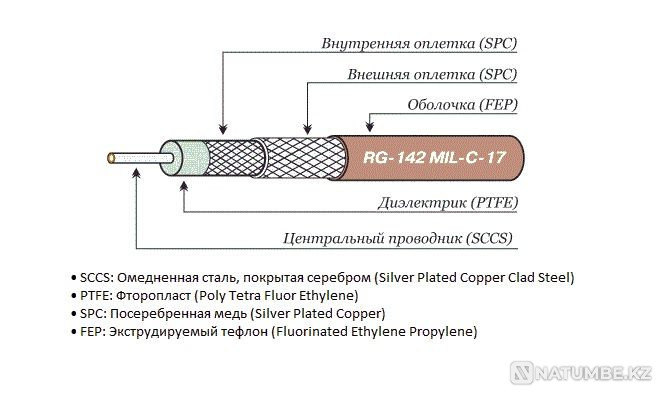

Professional coaxial cable RG142.Ideal for video systems.The RG142 cable was specially designed for the US military.High quality flexible coaxial microwave cable with double braided shield and fluoroplastic dielectric.Most often used in industrial systems; requiring increased reliability and traditionally in various microwave equipment for aerospace purposes. A solid silver-plated central conductor ensures high amplitude stability of the transmitted signal when bending. A screen made of double silver-plated braid of high density (94% and 97%) allows you to achieve a very good combination of electrical and mechanical parameters. RG142 also has good shielding efficiency (40 to 60 dB) and low passive intermode (PIM) signal degradation, which is kept to a minimum. Given the high temperature resistance and chemical inertness of the FEP (extruded teflon) outer sheath, the cable can be used in aggressive environments; and also has high heat and fire resistance. Recommended for use in particularly critical cases; where high signal fidelity coupled with high flexibility is required. Allows greater power to be carried. RG142 meets all MIL-C-17 specifications and uses standard connectors; so no proprietary or exotic parts are required to build the infrastructure.
